BLOWER PACKAGES

Engineered and Manufactured to Meet Your Exact Needs

  Expand to see Gardner Denver blower packages.

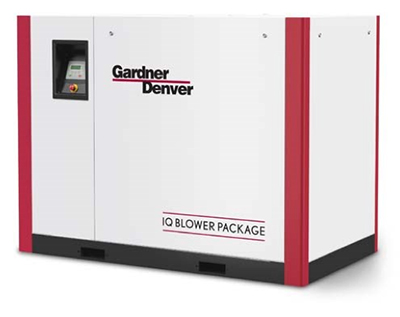

GD IQ – Twisted Tri-Lobe Blower Package (7.5 – 100 hp)
Airflow to 1,500 cfm |  Pressure to 15 PSIG |  Vacuum to 17 inHG

>>  Intelligent package engineered with innovation and quality
>>  Intensely quiet design (as low as 60 dBA)
>>  Integral AirSmart Controller provides component monitoring
>>  Backed by 150 years of proven results

GD IQ-RB – Straight Tri-Lobe Blower Package (3 – 500 hp)
Airflow 9 to 5,500 cfm |  Pressure to 15 PSIG |  Vacuum to 15 inHG

>>  Low pressure package
>>  Integrated RBS 15-165 tri-lobe blowers
>>  Low energy consuming electric motor
>>  Fixed speed operation

GD IQ-HE- Helical Screw Blower Package
Airflow to 5,625 cfm |  Pressure to 36 PSIG

>>  Offers extended high pressure range
>>  High efficiency package
>>  Reduce energy bills
>>  AirSmart G2 controller

  Expand to see Universal Blower Pac packages.

EXPII – Express Delivery Blower Package (1 – 350 hp)
Airflow 10- 4,400 cfm |  Pressure to 15 PSIG |  Vacuum to 17 inHG

>>  Engineered to allow dozens of blower and motor combinations
>>  NEMA frame solutions for customization, yet fast delivery
>>  Quality Materials: Heavy steel base, full grade silencers, rugged flex joints
>>  Numerous options from instrumentation, full or partials enclosure, VFD controls, red expedited delivery

EE-PAC – High Efficiency Screw Blower System
Airflow 10- 6,800 cfm |  Pressure to 20 PSIG

>>  35% more efficient than traditional PD (positive displacement) blower
>>  Two efficient screw rotor options: tri-lobe axial or helical five fluted rotor
>>  Engineered with SR Motor Technology exclusive in the US with UBP
>>  Lower maintenance with direct drive coupling and oil free compressor
>>  Full range of instrumentation and manufacturers for easy integration
>>  Full enclosure with front/back removable panels for easy access
>>  Forced air ventilation engineered to increase blower life and performance

3C-PAC – Compact, Customizable Blower Package (1 – 350 hp)
Airflow to 2,900 cfm |  Pressure to 15 PSIG |  Vacuum to 17 inHG

>>  Numerous blower options (two or tri-lobe) to customize to exact needs
>>  Full range of instrumentation and manufacturers for easy integration
>>  Full enclosure with front/back removable panels for easy access
>>  Forced air ventilation engineered to increase blower life and performance

3C-HYBRID – Hybrid Technology in the 3C Blower Package (1 – 350 hp)
Airflow to 2,900 cfm |  Pressure to 15 PSIG |  Vacuum to 17 inHG

>>  Award winning (2017 Top Project) high efficiency hybrid blower system
>>  Two efficient screw rotor options: tri-lobe axial or helical five fluted rotor
>>  Full range of instrumentation and manufacturers for easy integration
>>  Full enclosure with front/back removable panels for easy access
>>  Forced air ventilation engineered to increase blower life and performance
